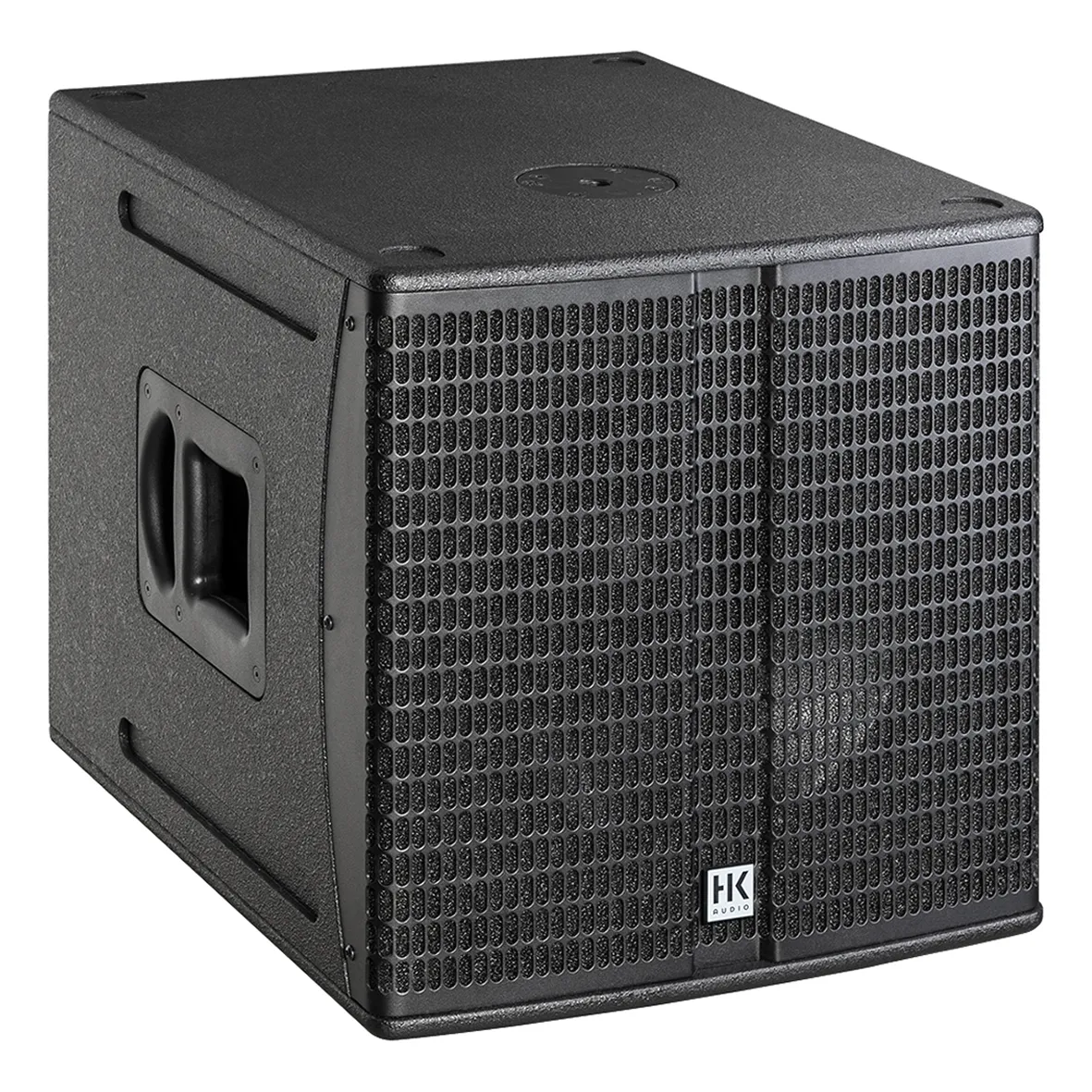

L SUB 1500 A – A LOW-END BOOST FOR THE LINEAR SERIES

Powered subwoofer, 1200W, 1x 15″ speaker, 131 dB max. SPL, rugged wood enclosure, ideal add-on to mid/high units from the LINEAR 3 family

Description :

LINEAR SUB 1500 A is – a 15” bass reflex subwoofer – a diminutive miracle of power. A powerful punch, precise playback and an impressive low end (all the way to 45 Hz) make this powered sub the perfect add-on to mid/high units from the LINEAR 3 family when particularly dynamic and crisp bass response is required. What’s more, LINEAR SUB 1500 A can also be used in combination with mid/high units from the LINEAR 5 family, or as a bass extension to the ELEMENTS EASY BASE, SMART BASE and LINE BASE systems.

Compact powered subwoofer
1200 watts
1 x 15″ speaker
131 dB Max SPL Peak @ 10% THD (halfspace)
Ideal add-on to mid/high units from the LINEAR 3 family
Can also be used in combination with LINEAR 5 mid/high units, or as a bass extension to the ELEMENTS EASY BASE, SMART BASE and LINE BASE systems
Rugged wood enclosure
Adjustable X-over frequency
Integrated HK Audio MultiGrips

Techn. Data

Max SPL 129 dB half-space (@ 10% THD)
Max SPL peak 131 dB half-space (@ 10% THD)
Max SPL calculated 132 dB half-space
Frequency response +/- 3 dB 49 Hz – X-Over
Frequency response -10 dB 45 Hz – X-Over
Power Rating 1200 W
Amplifier Class D
Active protection circuits Under-voltage, thermal, short circuit, and over-current protection, Subsonic 24 dB/oct. peak limiter
LF Speaker 1x 15"
Cut-off Frequency active 100/120 Hz variable with 24 dB/oct.

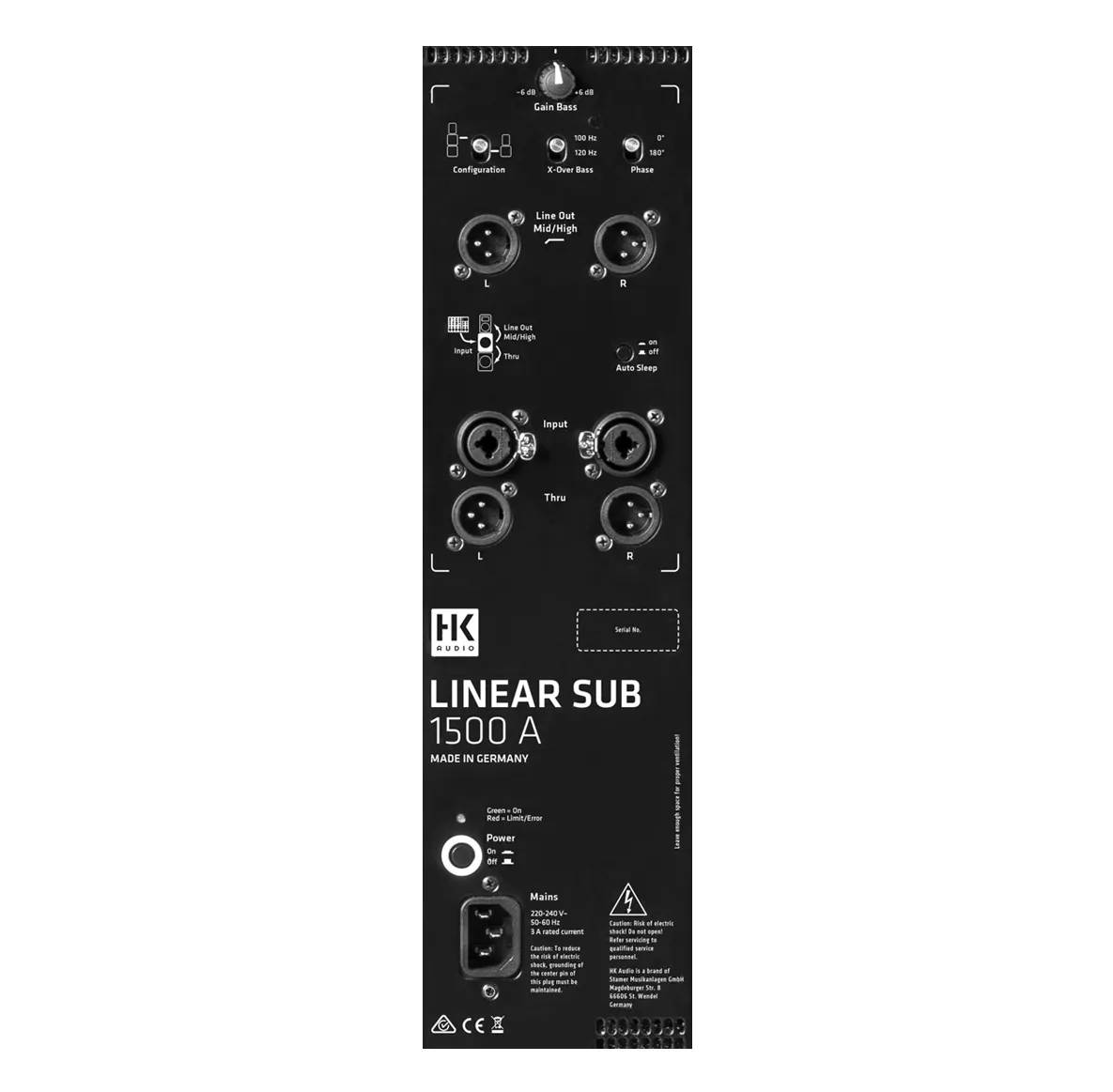

Connections 2x XLR Combo In bal., 2 x XLR Thru bal., 2x XLR-Mid/High Out
Input Sensitivity +4 dBu @ Gain center-notched

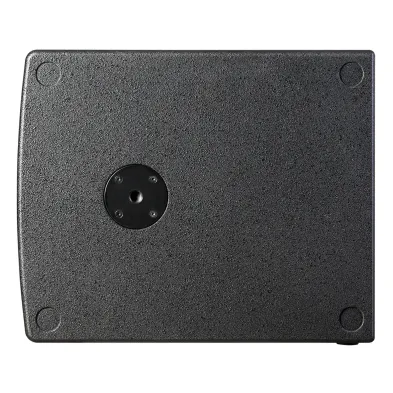

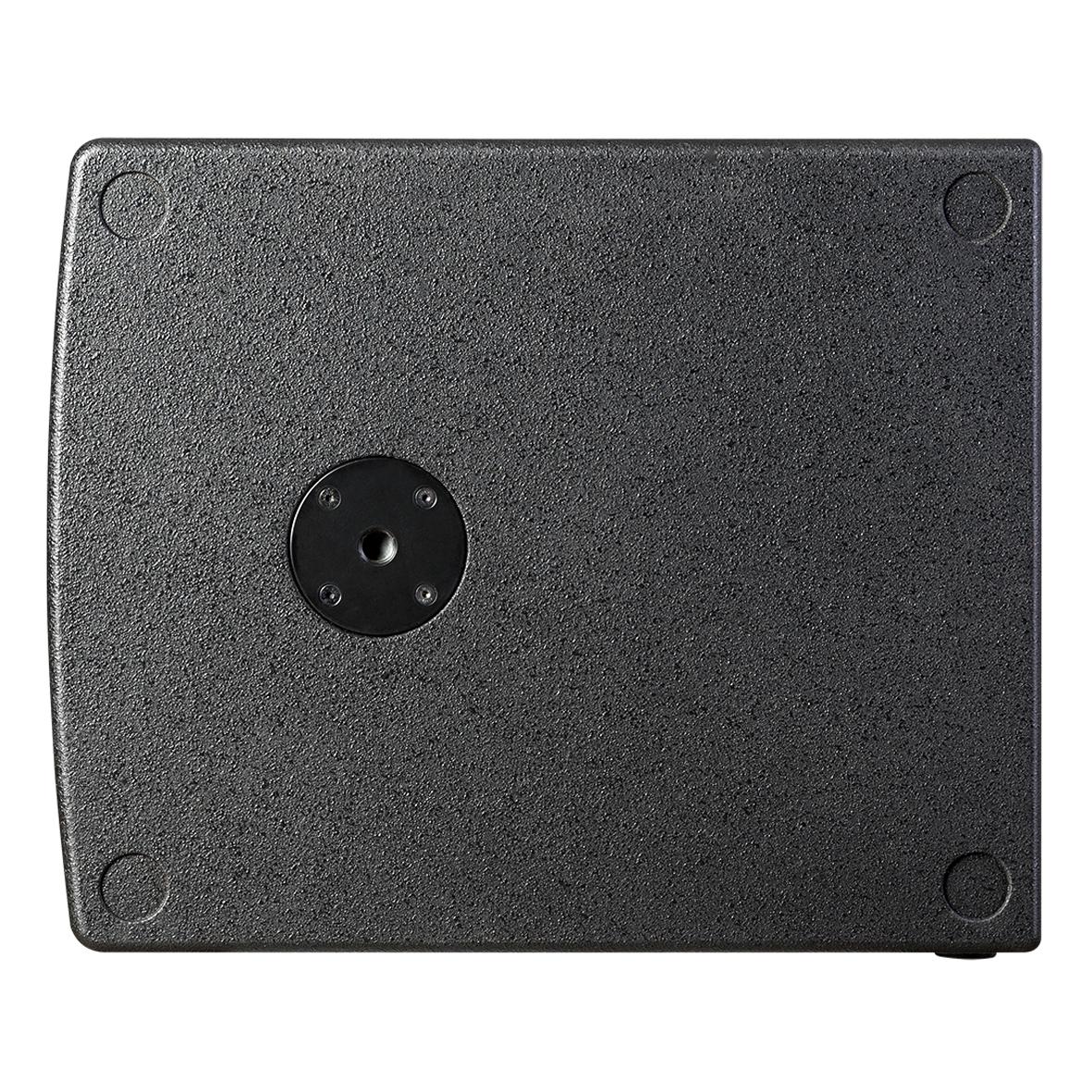

Pole mount 1x M20 (K&M)
Handles 2x HK Audio MultiGrip
Enclosure MDF 16 mm
Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover, Stereo Pole Add-On M20, tilt unit, 100 mm casters
Dimensions (WxHxD) 48,5 x 48,5 x 59,5 cm
Weight 29,8 kg / 65,7 lbs.
