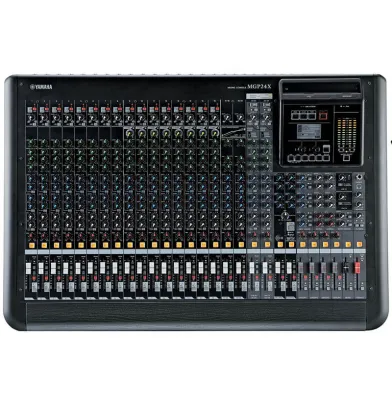

Mixer MGP24X Yamaha

The MGP24X is a 24-channel mixing console with iPhone/iPod connectivity, compression and digital effects. This mixer is appropriate to a wide range of professional applications from portable P.A. to fixed installation. The MGP24X features: 16 Mic Inputs with 48V Phantom Power and HPF per Channel, 24 Line Inputs (16 mono and 4 stereo), 6 AUX Sends + 2 FX Sends, 4 GROUP Buses + ST Bus, 2 Matrix out, and 1 Mono out. Great sounding microphone preamps, detailed EQ, quality digital effects and broad digital connectivity.

FEATURES

16 Mic Inputs with 48V Phantom Power and HPF per Channel
24 Line Inputs (16 mono and 4 stereo)
6 AUX Sends + 2 FX Sends
4 GROUP Buses + ST Bus
2 Matrix out

SPECIFICATIONS

MGP24X 24-Input Hybrid Digital/Analog Mixer with USB Rec/Play and Effects

Mixing capacity

Mixing channels: 24 Line Inputs (16 mono and 4 stereo)
GROUP: 4 GROUP Buses + ST Bus
AUX: 6 AUX Sends + 2 FX Sends
MATRIX: 1 Matrix out
On-board processors:L FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)

I/O
Mic inputs: MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
Phantom power: 48V phantom power per channel
Line inputs: LINE: 16 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo
Digital I/O: USB Device, iPod / iPhone

General

Total harmonic distortion: 0.02% (20Hz-20kHz@ +14dBu)
Frequency response: +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Equivalent input noise: -128 dBu Equivalent Input Noise
Residual output noise: -94 dBu Residual Output Noise
Crosstalk: -74dB @ 1kHz
Power requirements: 100-240V 50Hz/60Hz
Power consumption: 86W max
Dimensions, W x H x D: 32.2" x 6.7" x 22.2"
Net weight: 34.2lb
