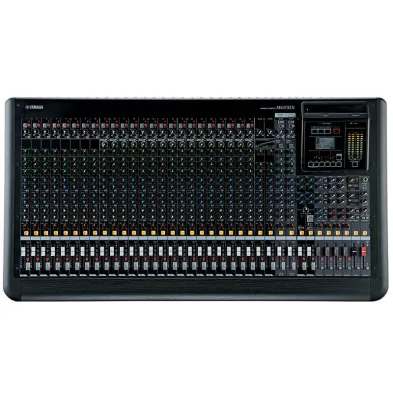

Mixer MGP32X Yamaha

MGP32X 32-Input Hybrid Digital/Analog Mixer with USB Rec/Play and Effects

Specifications:

Mixing capacity
Mixing channels: 32 Line Inputs (24 mono and 4 stereo)
GROUP: 4 GROUP Buses + ST Bus
AUX: 6 AUX Sends + 2 FX Sends
MATRIX: 1 Matrix out
On-board processors:L FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)

I/O
Mic inputs: MIC: 24 (INPUTS HPF: 100Hz 12dB/oct)
Phantom power: 48V phantom power per channel
Line inputs: LINE: 24 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo
Digital I/O: USB Device, iPod / iPhone

General

Total harmonic distortion: 0.02% (20Hz-20kHz@ +14dBu)
Frequency response: +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Equivalent input noise: -128 dBu Equivalent Input Noise
Residual output noise: -94 dBu Residual Output Noise
Crosstalk: -74dB @ 1kHz
Power requirements: 100-240V 50Hz/60Hz
Power consumption: 86W max
Dimensions, W x H x D: 40.4" x 6.7" x 22.2"
Net weight: 41.9lb
