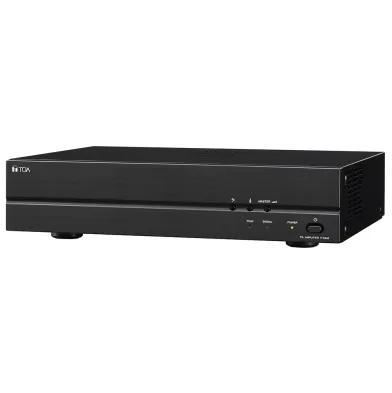

Power Amplifier ZP-2240 TOA

Power Source 220 - 240 V AC, or 24 - 30 V DC
Rated Output 240 W
Power Consumption 238 W (EN60065), 520 W (AC operation at rated output),
15 A (DC operation at rated output)
Frequency Response 50 - 20,000 Hz (±3 dB)
Distortion 1% or less at 1 kHz, 1/3 rated power
Input Line in: 0 dB*, 10 kΩ, balanced, screw terminal,
distance between barriers: 8.3 mm (0.33")
Speaker line in: 40 dB*, 330 kΩ, unbalanced, screw terminal,
distance between barriers: 8.3 mm (0.33")
Power remote control: Make contact
Output Loop out: 0 dB*, 10 kΩ, balanced, screw terminal,
distance between barriers: 8.3 mm (0.33")
Speaker out: Balanced (floating)
High impedance: 42 Ω (100 V), 21 Ω (70 V)
Low impedance: 4 Ω (31 V)
S/N Ratio 60 dB or more
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Ventilation Fan cooling
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions 420 (W) × 100.9 (H) × 351.3 (D) mm (16.54" × 3.97" × 13.83")
Weight 15.5 kg (34.17 lb)
