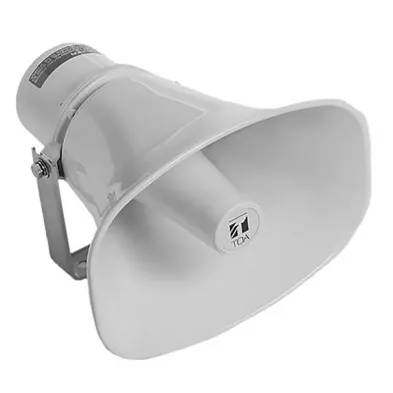

Speaker Horn ZH-625S TOA

Rated Input 30 W (Mobile Mount use: 15 W)
Rated Impedance 8 Ω
Sound Pressure Level 113 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response 250 Hz - 10 kHz
Sensitivity when used as Microphone 2 (0 dB=1 mW/10 dynes/cm ) -20 dB at 1 kHz
Dust/Water Protection IP65
Polarity Hot: Black, Com: White
Operating Temperature -20 ℃ to +55 ℃ (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Dimensions 285 (W) × 227 (H) × 277 (D) mm
Weight 1.7 kg
Option Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
