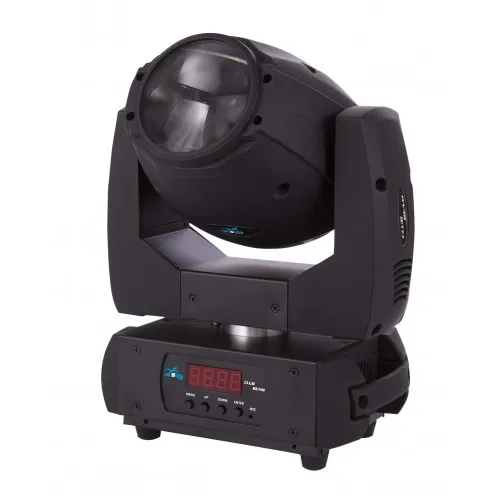

Moving head Club Beam Sagitter

The CLUB series was designed by listening to the needs of indoor and outdoor entertainment professionals. The winning features of this new line are: the luminous efficiency, the compactness and the functionality, three core values in today’s market. The Club Beam has been designed to give the possibility to enter the dance entertainment industry with the functionality and performance of similar machines in the field of live entertainment, with a compact body with low consumption. There are many functions as well as the possibilities to mix the various effects, with 14 colours including two conversion filters such as CTB and CTO, 17 fixed gobos which thanks to the 8-sided prism and 4 selectable “steep iris” make the machine special effects unique.
Technical Specifications Club Beam

Light source

1x72W white led high brightness
Color temperature 5600K
LED lifespan: >50.000h
LED Refresh frequency: >400Hz flicker-free

Optic system

Beam angle: 2°
Luminous flux: 19680 lux @5mt (2°)

Color system

Color wheel with 14 colors + white

Effects

Gobo wheel: 17 fixed gobos
Bidirectional gobo scroll with adjustable speed
8-facet rotating prism with adjustable speed
Color rainbow effect in both directions
Linear dimmer 0 - 100%
High speed electronic strobe max.25 flashes/s, with adjustable speed
Random strobe and pulse dimmer effects with adjustable speed

Control and programming

2 DMX configurations available: 9/11 channels
Protocol USITT DMX 512
Pan&Tilt 8/16 bit selectable
Master / Slave mode
Sound mode with adjustable microphone sensitivity
Auto mode with 7 internal programs selectable from display
Reset via DMX

Structure and cabinet

Black aluminium/metal Housing, and plastic materials with high resistance
Red LED display
3 different Pan&Tilt angle presets: PAN 360°-540°-630°, TILT 90°-180°-270°
Mounting points with 1 omega holder
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
3-poles XLR in/out connection
IP Rating: IP 20
Forced air fan cooling system with electronic control

Power supply

Input Voltage: AC~100-240V 50/60Hz
Switching power supply unit
Power consumption 100W
IN power connection with powerCON sockets
Power supply cable 1,5 mt included

Weight and dimensions

Net weight: 6 kg
Dimensions: 270x149x364 mm
