2231 Dual Channel 31-Band Equalizer

Product Description:
The EQ2231 is a 3U 30 band, constant Q Stereo Graphic Equalizer.
Key Features and Benefits:
EQ filter is bypassed if fader is in centre indent position
In the event of power failure a high quality relay switch sends input signal directly to output connectors
Power-on delay for soft start

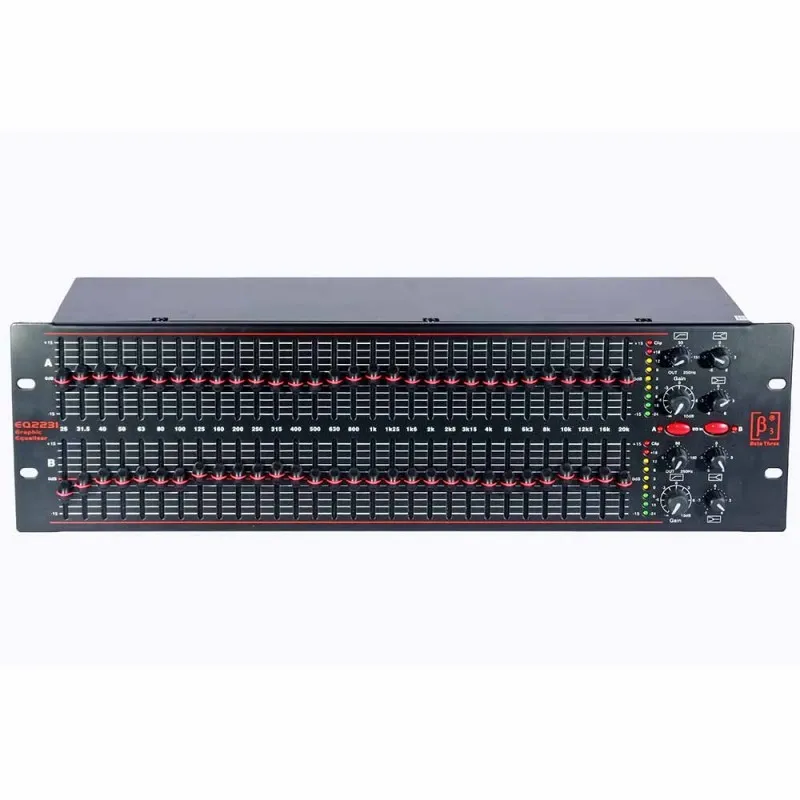

Front Panel
2 x 30 constant Q faders ±15dB control range
9 x segment signal output LEDs
Gain control
High pass filter up to 250Hz
Low frequency shelf filter ±6dB of gain at 50Hz
High frequency shelf and filter ±6dB gain 14kHz
EQ bypass switch

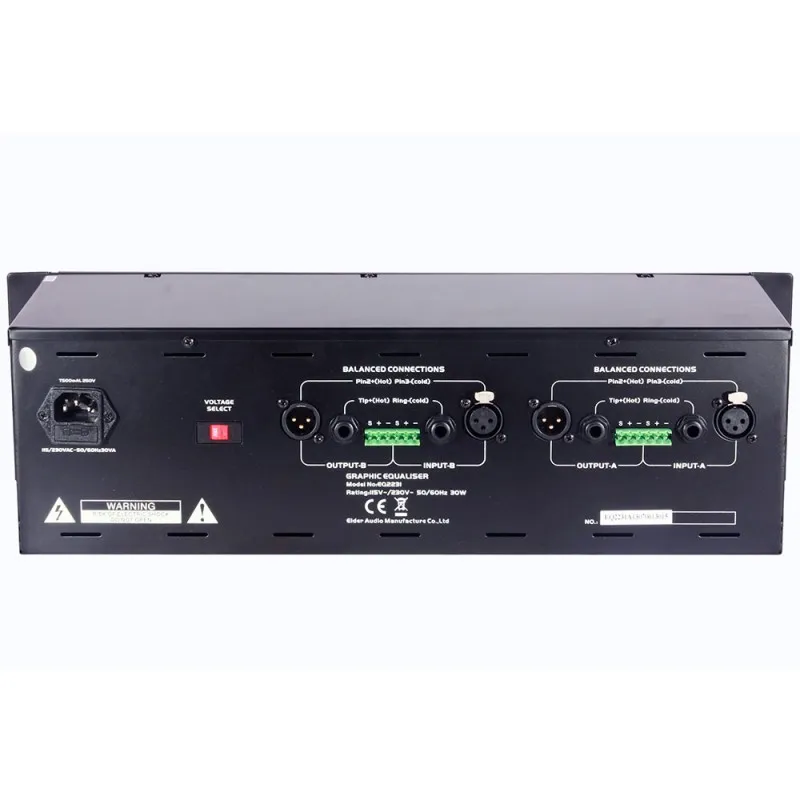

Rear Panel
2 x Balanced XLR input connectors
2 x Balanced XLR output connectors
6.5mm inputs and outputs connectors
Phoenix inputs and output connectors
