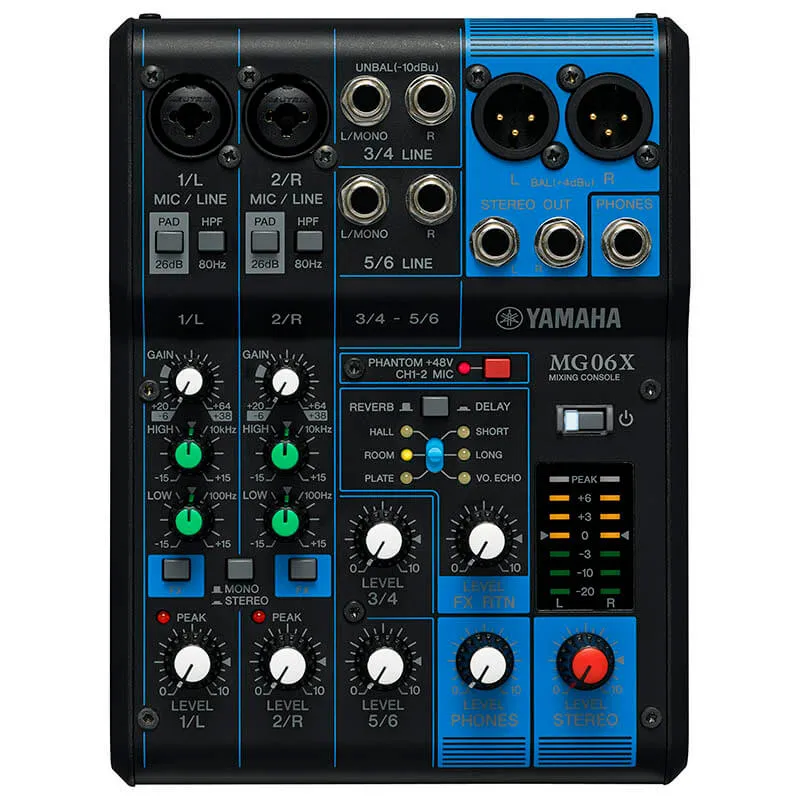

Mixer MG06X Yamaha

Now in its third incarnation, the MG Series embodies the pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. The MG06X is the six-channel version of the series, with two mono XLR and 1/4" hybrid inputs along with two stereo line inputs.

The MG06X boasts an intuitive interface with capacities suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability that has made it a leader in its class.

Features

Outstanding microphone preamps
Switchable Phantom Power & PAD Switch
EQ and High-pass Filters
AUX / Effect Sends / Group
LED level metering
Built-in SPX Digital Effects
Metal Chassis

MG06X 6-Channel Mixer Specifications:

On-board processors : SPX algorithm: 24 programs
Phantom power: +48 V
Input Channels: 2 Mono[MIC/LINE], stereo[LINE]: 2
Output Channels: STEREO OUT: 2
PHONES: 1
Bus: Stereo: 1
Input Channel Function
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono)
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
