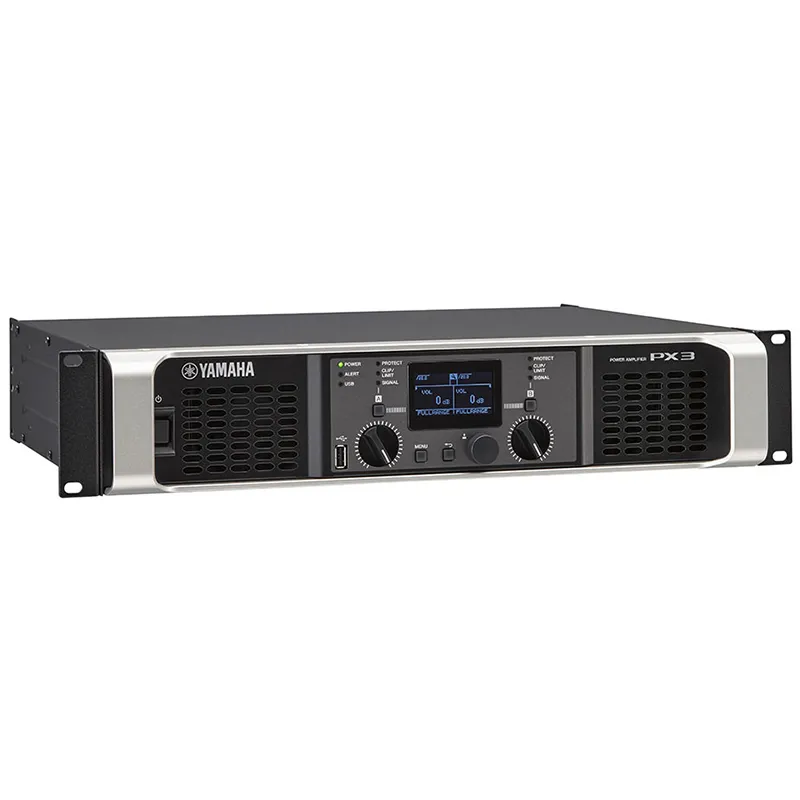

Power Amplifier PX3 Yamaha

Yamaha's PX3 dual-channel Class D power amplifier gives you more than great-sounding amplification. It packs powerful built-in processing that would normally require external PA management processing. We're talking onboard equalization for fine-tuning outputs, crossovers for integrating subs and fills, delays for correcting phase issues in large rigs, and a speaker-saving limiter. Factor in stellar sound quality, easy control via the LCD display, and its ultra-light weight, and it's clear the Yamaha PX3 stands out among power amps in its class.

Yamaha PX3 Dual-channel Class D Power Amplifier Features:

Dual-channel Class D power amplifier with built-in PA management processing
Connectivity includes XLR and TRS inputs and speakON, binding post, and phono outputs
Power Boost Mode bridges the outputs to achieve double the wattage (reduces output to a single channel)
Built-in PA management tools such as EQ, limiting, delays, crossovers, and filters
LCD display for easy navigation of advanced features

Tech Specs

Number of Channels 2
Power Class Class D
Watts/Side @ 8 ohms 300W
Watts/Side @ 4 ohms 500W
Watts/Side @ 2 ohms 300W
Watts Bridged 600W @ 8 ohms, 1000W @ 4 ohms

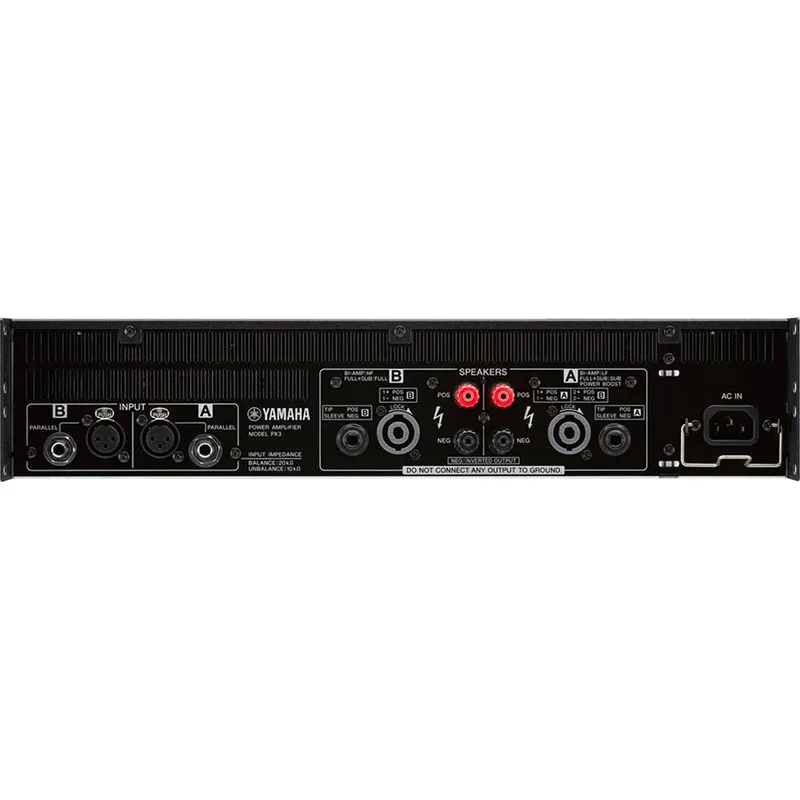

Inputs 2 x XLR, 2 x 1/4" TRS
Outputs 2 x speakON NL4, 2 x Binding Post, 2 x 1/4" TS
Cooling System 2 x 16-step variable speed fan, front to rear airflow
DSP EQ, Limiting, Delay, Crossovers (saved via USB Type A port)
Filters Yes
Rack Spaces 2U
Height 3.46"
Depth 15.25"
Width 18.87"
Weight 15.21 lbs.
